Title and Description

v3.4.4 and after

You can add the workflows.argoproj.io/title and workflows.argoproj.io/description annotations to a Workflow to display in the workflow lists:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  name: my-wf
  annotations:
    workflows.argoproj.io/title: 'Build and test' # defaults to `metadata.name` if not specified
    workflows.argoproj.io/description: 'SuperDuperProject PR #6529: Implement frobbing (aff39ee)'

The above manifest will render as a row like the below image: Title and Description Example

Embedded Markdown

v3.6 and after

You can also embed Markdown into the annotations:

apiVersion: argoproj.io/v1alpha1
kind: Workflow
metadata:
  name: my-wf
  annotations:
    workflows.argoproj.io/title: '**Build and test**' # defaults to `metadata.name` if not specified
    workflows.argoproj.io/description: '`SuperDuperProject` PR #6529: Implement frobbing (aff39ee)'

The above manifest will render as a row like the below image: Markdown Example

Below are a few more examples:

# 1. markdown title, markdown description using [`remark-gfm`](https://github.com/remarkjs/remark-gfm) to convert URLs into anchor links
metadata:
  annotations:
    workflows.argoproj.io/title: '**feat: Allow markdown in workflow title and description. Fixes #10126**'
    workflows.argoproj.io/description: https://github.com/argoproj/argo-workflows/pull/10553

# 2. no title (defaults to `metadata.name`), no description
metadata:
  name: wonderful-poochenheimer

# 3. markdown title, no description
metadata:
  annotations:
    workflows.argoproj.io/title: '**Build and test and test**'

# 4. no title (defaults to `metadata.name`), markdown description
metadata:
  name: delightful-python
  annotations:
    workflows.argoproj.io/description: '`SuperDuperProject` PR #6529: Implement frobbing (aff39ee)'

# 5. markdown title, markdown description with a markdown link
metadata:
  annotations:
    workflows.argoproj.io/title: '**Build and test**'
    workflows.argoproj.io/description: '`SuperDuperProject` PR [#6529](https://github.com): Implement frobbing (aff39ee)'

The above examples will render as rows like the below image: More Markdown Examples

The title and description annotations also support multi-line values. Longer values will be truncated in the workflow list view, but can be seen in the DESCRIPTION section when the workflow row is expanded to display the workflow drawer.

Below is an example:

# markdown title, multi-line markdown description with URL converted into an anchor link
metadata:
  annotations:
    workflows.argoproj.io/title: '**Test Title**'
    workflows.argoproj.io/description: |
      `This is a simple hello world example.`
      You can also run it in Python: https://couler-proj.github.io/couler/examples/#hello-world

The above example will render an expanded row like the below image: Workflow Drawer Markdown Examples

For ClusterWorkflowTemplates

v3.7 and after

You can also add the workflows.argoproj.io/title and workflows.argoproj.io/description annotations with embedded markdown to a ClusterWorkflowTemplate to display in the list:

apiVersion: argoproj.io/v1alpha1
kind: ClusterWorkflowTemplate
metadata:
  name: my-cluster-workflow-template
  annotations:
    workflows.argoproj.io/title: '**Test Title**'
    workflows.argoproj.io/description: `This is a simple hello world example.`

The above manifest will render as a row like the below image: ClusterWorkflowTemplate Example

For CronWorkflows

v3.7 and after

You can also add the workflows.argoproj.io/title and workflows.argoproj.io/description annotations with embedded markdown to a CronWorkflow to display in the list:

apiVersion: argoproj.io/v1alpha1
kind: CronWorkflow
metadata:
  name: my-cron-workflow
  annotations:
    workflows.argoproj.io/title: '**Test Title**'
    workflows.argoproj.io/description: `This is a simple hello world example.`

The above manifest will render as a row like the below image: CronWorkflow Example

For WorkflowTemplates

v3.7 and after

You can also add the workflows.argoproj.io/title and workflows.argoproj.io/description annotations with embedded markdown to a WorkflowTemplate to display in the list:

apiVersion: argoproj.io/v1alpha1
kind: WorkflowTemplate
metadata:
  name: my-workflow-template
  annotations:
    workflows.argoproj.io/title: '**Test Title**'
    workflows.argoproj.io/description: `This is a simple hello world example.`

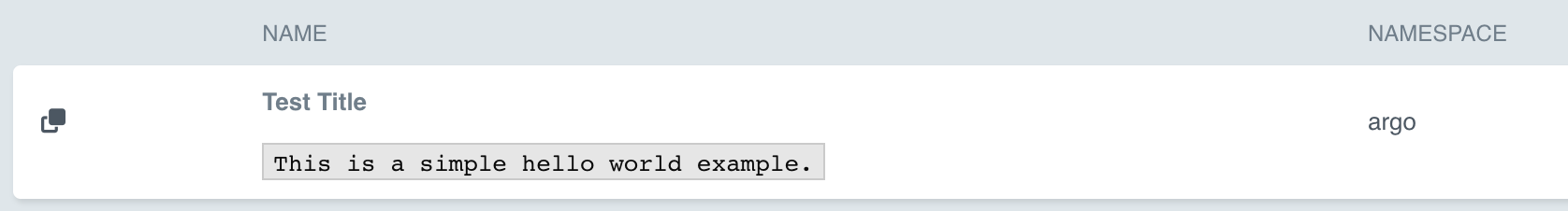

The above manifest will render as a row like the below image: WorkflowTemplate Example
